Carton Erector & Sealer
Flat cardboard → folded, taped box, ready to fill.

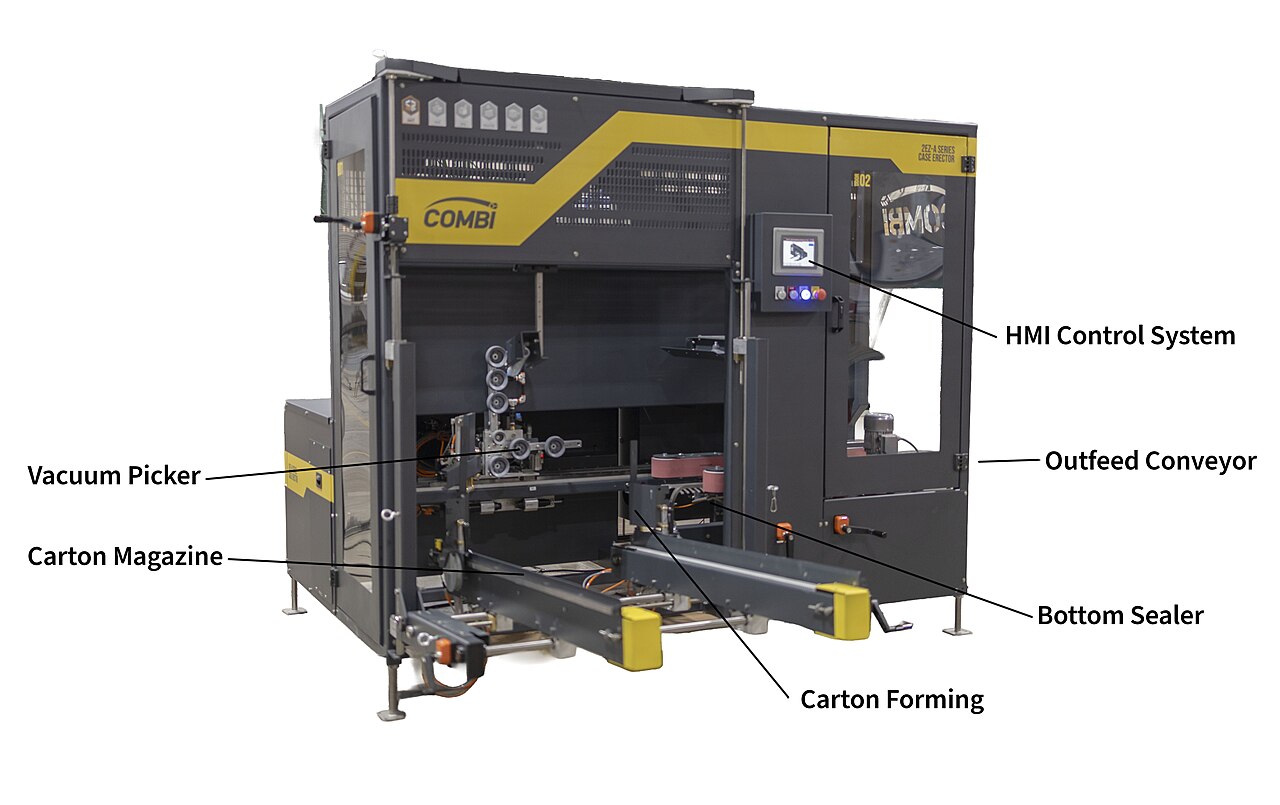

High-speed case erector — Wikimedia Commons
Hand-folding cartons is slow, hurts wrists, and produces uneven boxes that jam downstream packers. A case erector pulls one blank from a magazine, opens it, folds the bottom flaps, and applies tape (or hot-melt glue) — every box identical, every minute.
Step by step
- 01
Operator loads a stack of flat blanks into the magazine (holds 50–200).
- 02
A vacuum cup pulls one blank from the stack and presents it to the forming station.
- 03
Side flaps are pre-broken; the box is squared by mechanical guides.
- 04
Bottom minor flaps fold in; major flaps fold under.
- 05
A tape head (or glue gun) seals the bottom seam.
- 06
The open box exits onto the next station — filler, packer, or palletizer.
What's in the cell
- Blank magazine (capacity 50–200 cartons)
- Vacuum pick-and-place head
- Forming mandrel with flap pre-breakers
- Tape head (2" or 3" pressure-sensitive) or hot-melt gun + nozzle
- PLC for cycle and changeover
- Optional carton-low alarm with reorder ping
Where it fits
- End-of-line packaging in food and beverage
- E-commerce dispatch (orders → boxes)
- Case-packing for retail SKUs
- Pharma secondary packaging
- Cosmetics and personal-care lines
- Industrial parts packing
Sized to your line
These ranges cover most installations — exact spec depends on your product, throughput target, and integration constraints. We confirm everything before quoting.
Stand-alone unit — no integration needed beyond plugging in air and power. We size against your fastest and slowest blank, and dial in the tape tension for clean seams.
Want this on your line?
Send us a quick note about your product, current throughput, and where it hurts. We'll come back within 48 hours with a sized proposal and a site-visit plan.
